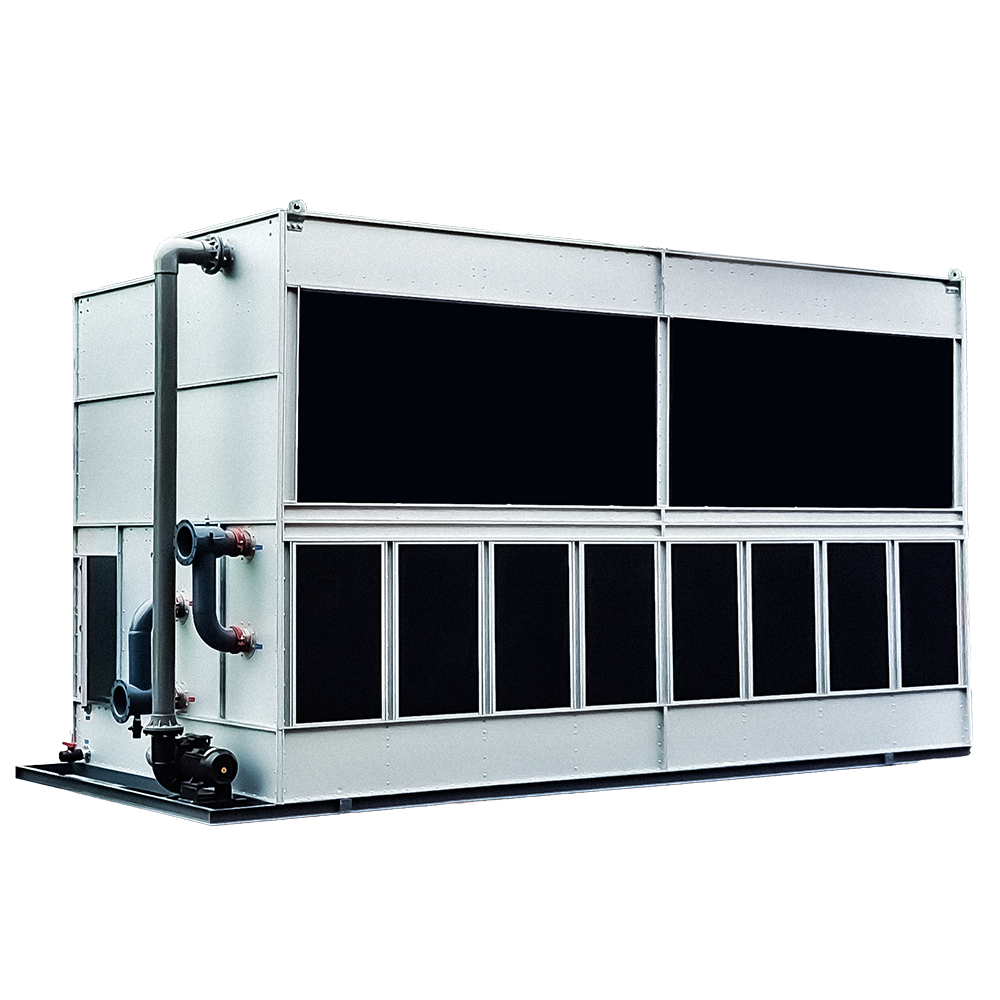

What are Closed Circuit Cooling Towers?

Closed circuit cooling towers, also known as closed-loop cooling towers, are an integral part of many industrial and commercial cooling systems. These towers offer efficient and reliable cooling solutions by combining the benefits of both air and water cooling in a single unit. This article will delve into the operating principle, structure & characteristics, advantages, application scope and future development prospects of closed cooling towers.

Operational Principles

A closed cooling tower achieves cooling through a closed-loop system with the following operational principles:

1. Heating of the circulating fluid: The circulating fluid (typically water or another cooling medium) absorbs heat from a heat source (such as industrial equipment or HVAC systems) and then enters the closed cooling tower.

2. Cooling process: Within the closed cooling tower, the circulating fluid passes through heat exchange coils. Air inside the cooling tower flows around the heat exchanger due to fans, carrying away heat from the circulating fluid. Simultaneously, spray water inside the cooling tower is evenly distributed over the heat exchanger through nozzles, accelerating heat transfer and evaporation.

3. Heat dissipation: Heat from the circulating fluid is removed through heat exchange in the heat exchanger and evaporation of spray water, causing a decrease in temperature. The cooled circulating fluid returns to the system, completing a cooling cycle.

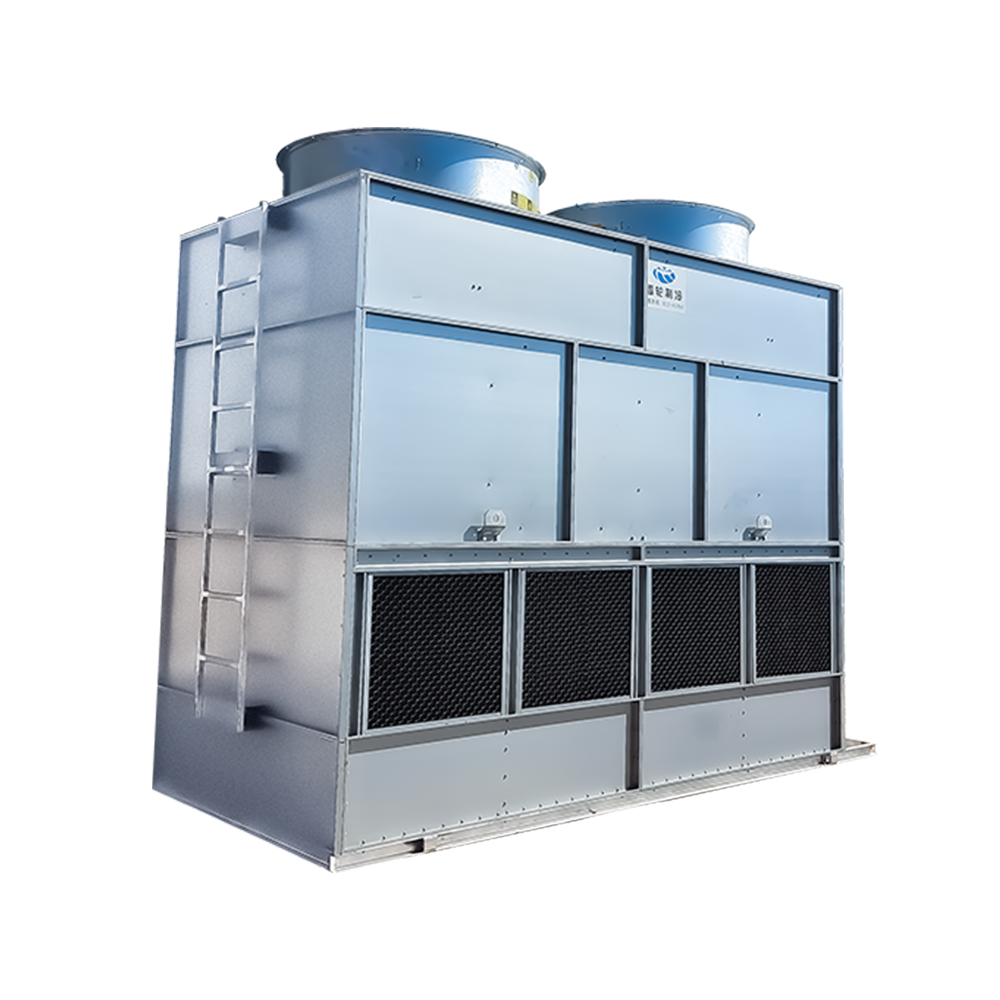

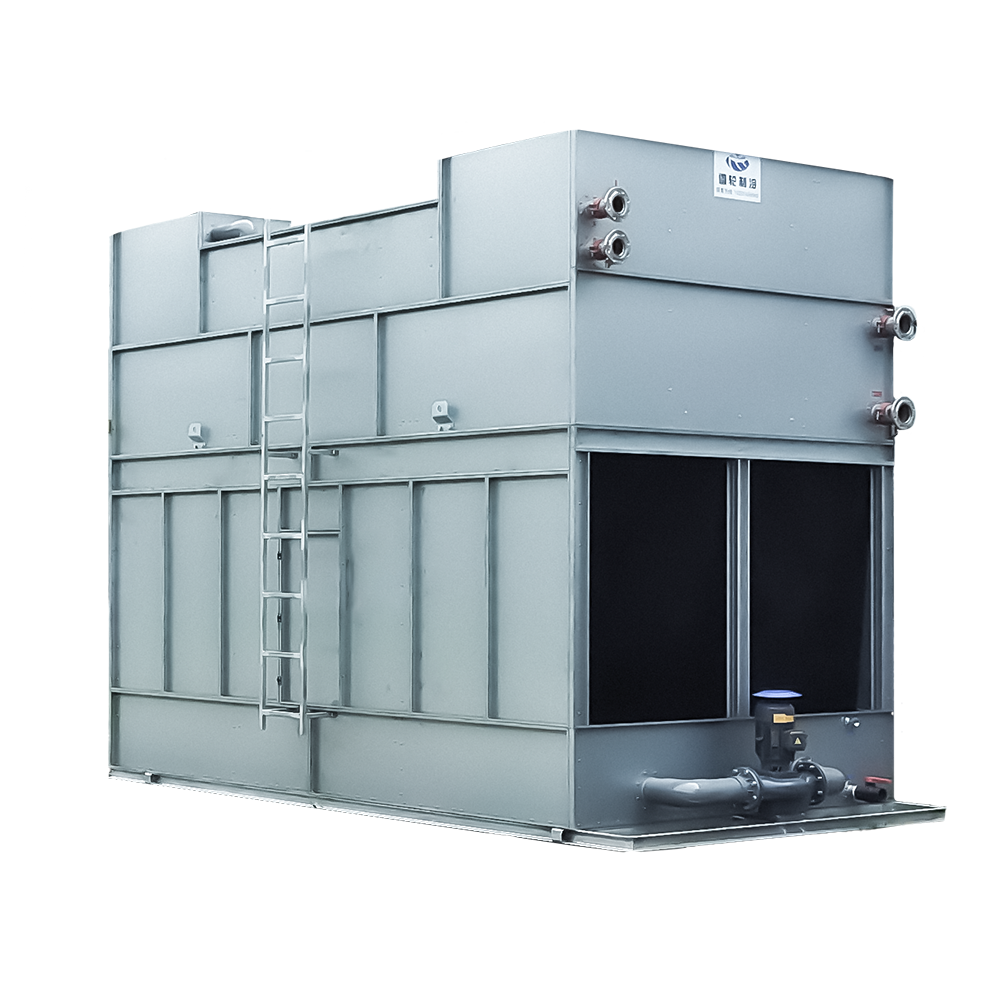

Key Components

1. Heat exchanger: usually composed of copper or stainless steel pipes with excellent thermal conductivity. These heat exchange coils contain the cooling medium and are where the primary heat exchange occurs.

2. Spray system: including nozzles and spray water pipes, used to evenly sprinkle water on the heat exchanger to promote heat transfer and evaporation.

3. Fan: installed on the top or side of the cooling tower, it enhances airflow and improves cooling effect through forced ventilation.

4. Drift eliminators: collect spray water at the bottom of the cooling tower and return it to the spray system through a circulating pump.

5. Air Inlet Louver: consists of PVC louvers or sheet metal frames designed to allow airflow into the tower while preventing debris from entering, and helps to reduce noise.

6. Water distribution system: sprays water over the coils to enhance the cooling process through evaporation.

7. Spray pump: circulates water or another cooling liquid through the spray system of the cooling tower.

8. Circulation pump: circulates the cooling medium through the system.

9. PVC Fill: increases the surface area for water-air contact, improving cooling efficiency.

10. Casing: usually made of corrosion-resistant materials, used to protect internal components and provide structural support.

11. Water collection basin: gathers the water used for spray cooling, which is then recirculated back into the system.

Advantages

Closed circuit cooling towers have the following advantages:

1. Water Conservation: By using a closed-loop system, these towers significantly reduce water consumption compared to open circuit systems.

2. Reduced Pollution: The closed system minimizes the risk of contamination of the process fluid, maintaining its quality and reducing maintenance needs.

3. Energy Efficiency: Closed circuit cooling towers are designed to maximize cooling efficiency, leading to lower energy consumption.

4. Space Efficiency: These systems often have a smaller footprint compared to traditional cooling methods, making them ideal for space-constrained environments.

5. Corrosion Prevention: The closed-loop system reduces exposure to the atmosphere, which helps prevent corrosion of the cooling coils and process fluid.

6. Easy maintenance: The closed cooling tower has a compact structure and easy maintenance and replacement of components, which reduces operating costs and maintenance difficulties.

7. Stable and reliable: The closed cooling tower can operate stably under various environmental conditions, has strong adaptability and high operating reliability.

Applications

Closed circuit cooling towers find applications across diverse industries, including:

1. Industrial Cooling: Cooling of large industrial equipment such as power plants, chemical plants, and steel plants.

2. HVAC Systems: Cooling of central air conditioning systems in large buildings, shopping malls, hospitals, etc.

3. Data centers: Cooling of high-performance computers and server rooms to ensure normal operation of equipment.

4. Manufacturing: Production equipments that need cooling in industries such as plastics and food processing.

5. Refrigeration Systems: Used in both commercial and industrial refrigeration to remove heat from the system.

Future Prospects

With increasing environmental awareness and the growing demand for energy efficiency, closed cooling towers have promising future prospects. Several key areas merit attention:

1. Technological Innovation: Constant development and application of new materials and processes enhance heat exchange efficiency and equipment durability.

2. Intelligent Control: Implementation of intelligent control systems enables automatic operation and remote monitoring, boosting operational efficiency and safety.

3. Energy Efficiency and Emission Reduction: Further design optimizations reduce energy consumption and water waste, promoting green and sustainable development.

4. Market Expansion: As industrialization and urbanization advance, the application scope of closed cooling towers expands, driving sustained market growth.

In essence, as efficient, eco-friendly, and energy-saving cooling solutions, closed cooling towers hold significant value across industrial and commercial sectors. With ongoing technological advancements and increasing market demand, their future prospects are indeed promising.
